# AMD DASH

DASH (Desktop and mobile Architecture for System Hardware) is a client management standard released by the DMTF (Distributed Management Task Force) for secure out-of-band and remote management of desktops and mobile systems.

Client systems that support out-of-band management help IT administrators perform tasks independent of the power state of the machine or the state of the operating system. Examples of out-of-band management tasks include:

* Securely starting up a system remotely, even if it is currently powered off
* Viewing asset inventory information for a system that is powered off
* Retrieving health information about system components even if the OS is unavailable.

{% hint style="info" %}
DeviceOn currently integrates power management but does not include VNC capabilities. This omission is due to the proprietary nature of the VNC server, which is incompatible with VNC viewers.
{% endhint %}

{% hint style="danger" %}
Note that the <mark style="color:blue;">**DeviceOn Server must be**</mark> <mark style="color:blue;">**on the same local network**</mark> as the edge device.
{% endhint %}

## Steps for Enabling

In the following example, we will use the Advantech EBC-V001 for illustration purposes.

**Step 1**: Enable DASH from BIOS

To enable the Realtek DASH function, follow these steps:

1. Navigate to the **Advanced** settings.
2. Select **Realtek Dash Configuration**.
3. Set the **Realtek Dash function** to **Enable**

<figure><img src="https://2609455635-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FeOYEBAkqbuotygPSIr8f%2Fuploads%2FuHEd0HsuHO4CwAbmlzhy%2Fimage.png?alt=media&#x26;token=7b2ae83d-3b54-4c90-b4cb-cbab134afad1" alt=""><figcaption></figcaption></figure>

**Step 2**: Dash Setup Guide

To configure DASH, navigate through the following steps:

1. Click on **Advanced**.
2. Select **Realtek PCI GBE Family Controller**.

<figure><img src="https://2609455635-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FeOYEBAkqbuotygPSIr8f%2Fuploads%2F2C76eQyrhDJNIfvgu1oo%2Fimage.png?alt=media&#x26;token=df037e37-3e19-4ada-855e-527ea441cbe4" alt=""><figcaption></figcaption></figure>

3. Choose **RealManage Setup**.

<figure><img src="https://2609455635-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FeOYEBAkqbuotygPSIr8f%2Fuploads%2FXAy2oMLQ77j1BeltdTvT%2Fimage.png?alt=media&#x26;token=984f5fc4-d127-4bb1-bd54-70528aa2b972" alt=""><figcaption></figcaption></figure>

To modify the DASH configuration, you must enter your **username** and **password** if you have previously set up an account.&#x20;

<figure><img src="https://2609455635-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FeOYEBAkqbuotygPSIr8f%2Fuploads%2FqEMRlxJL9e53A3q70eeH%2Fimage.png?alt=media&#x26;token=913a9d27-3c7b-4e78-99cd-93935d479c38" alt=""><figcaption></figcaption></figure>

For first-time users, you need to create an account follow these steps:

1. Go to **Setup and Configuration**
2. Select **Security Configuration**
3. Choose **Modify username and password**

<figure><img src="https://2609455635-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FeOYEBAkqbuotygPSIr8f%2Fuploads%2F8mMHLmPgKwZGWPPAxdJP%2Fimage.png?alt=media&#x26;token=b82bc0c8-5061-4636-8b9d-715d6cd184da" alt=""><figcaption></figcaption></figure>

4. After setting up your account and password, proceed to configure the network. Navigate to "**TCP/IP Configuration**" and enable DHCPv4. It is recommended to acquire the IP address from the DHCP server, similar to the in-band system.

<figure><img src="https://2609455635-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FeOYEBAkqbuotygPSIr8f%2Fuploads%2FGOobFKP4CPy8uqJL1yue%2Fimage.png?alt=media&#x26;token=f3fd5246-f320-47fb-9724-d0170c590125" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2609455635-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FeOYEBAkqbuotygPSIr8f%2Fuploads%2FjrMYeHDnrDMy530WqlIO%2Fimage.png?alt=media&#x26;token=24182650-6fd9-48c6-83b1-1f683b1df7cc" alt=""><figcaption></figcaption></figure>

5. Return to the **RealManage Setup** and ensure to **save** your configuration settings.

<figure><img src="https://2609455635-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FeOYEBAkqbuotygPSIr8f%2Fuploads%2FCD4fi8VzB4beE9zRdrau%2Fimage.png?alt=media&#x26;token=10b787a2-e7cc-4021-a982-71f06022241c" alt=""><figcaption></figcaption></figure>

## Connect and Verify

Realtek offers a management tool known as the "**Realtek Management Console**." To connect and verify an AMD DASH device on your laptop, ensure both devices are on the same network.

<figure><img src="https://2609455635-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FeOYEBAkqbuotygPSIr8f%2Fuploads%2F3Ahsj2CXLmCN5GrhbFdN%2Fimage.png?alt=media&#x26;token=e47eb754-0aec-452b-b104-94c6e66ec97c" alt=""><figcaption></figcaption></figure>

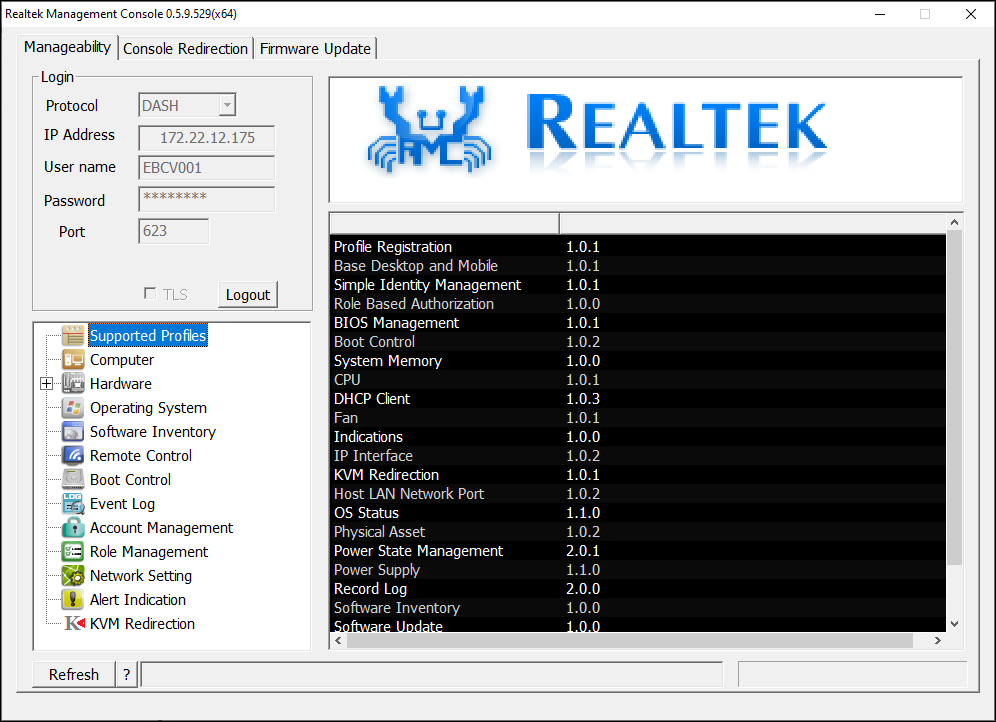

To login to your DASH device, enter the **IP address**, along with the **username** and **password** you set up previously. Please ensure you connect through port **623** and verify that your device's firewall settings allow traffic on this port.&#x20;

<figure><img src="https://2609455635-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FeOYEBAkqbuotygPSIr8f%2Fuploads%2FW3WUpqKTamfFp4XJqaoZ%2Fimage.png?alt=media&#x26;token=f4ace567-19e5-4b81-9d62-7f77e5968f41" alt=""><figcaption></figcaption></figure>

After logging in, the manageability interface displays a submenu with monitoring information and functions, including **Computer Information**, **Hardware Details**, **Operating System Details**, **Software Inventory**, **Remote Control**, **Boot Control**, **Event Log**, **Account Management**, **Role Management**, **Network Settings**, **Alert Notifications**, and **KVM Redirection**.

## Configure the DeviceOn Agent

To apply the changes, enable AMD DASH, configure the account credentials, and then reconnect to the DeviceOn server.

<figure><img src="https://2609455635-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FeOYEBAkqbuotygPSIr8f%2Fuploads%2Fp1kVRzjITUWPUWW8TZob%2Fimage.png?alt=media&#x26;token=35d55bc6-bd6f-4b2b-84c3-14bb8df53998" alt=""><figcaption></figcaption></figure>

If the configuration is correct, the DeviceOn Server will attempt to connect to the device's DASH. After a successful connection, the **Out-of-Band AMD DASH indicator light will turn on**, enabling power management capabilities.

<figure><img src="https://2609455635-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FeOYEBAkqbuotygPSIr8f%2Fuploads%2FVKQqBEZEdBArMu0UaQbO%2Fimage.png?alt=media&#x26;token=13b42338-7ea6-45a7-8010-7c4fe34730af" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2609455635-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FeOYEBAkqbuotygPSIr8f%2Fuploads%2FFLe9uPnBUyCXEBFKSzeB%2Fimage.png?alt=media&#x26;token=8fd56a1d-7359-43f4-afa1-685d89cd479d" alt=""><figcaption></figcaption></figure>
